*Specifications are subject to change. To be used as a guide only.

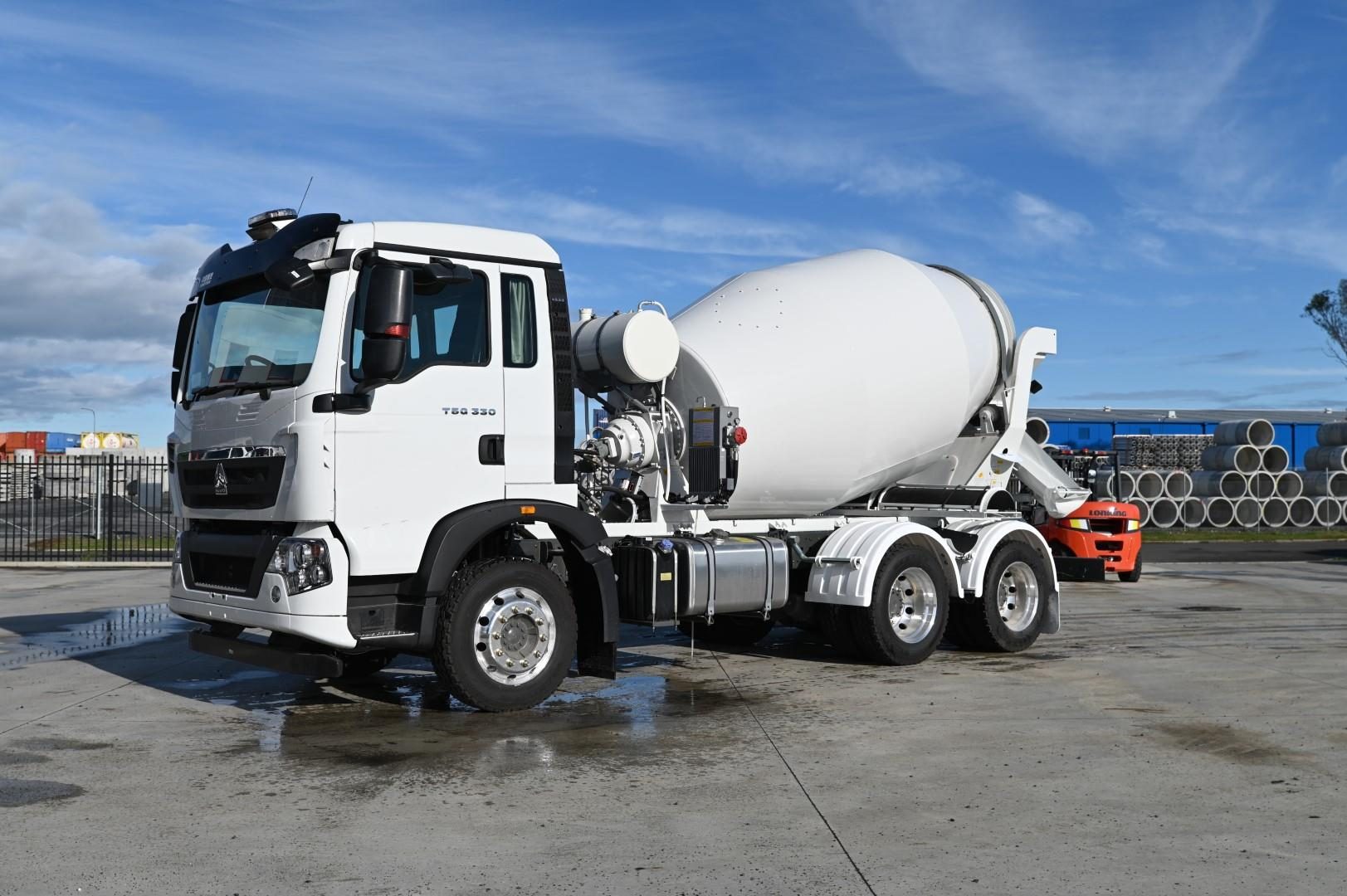

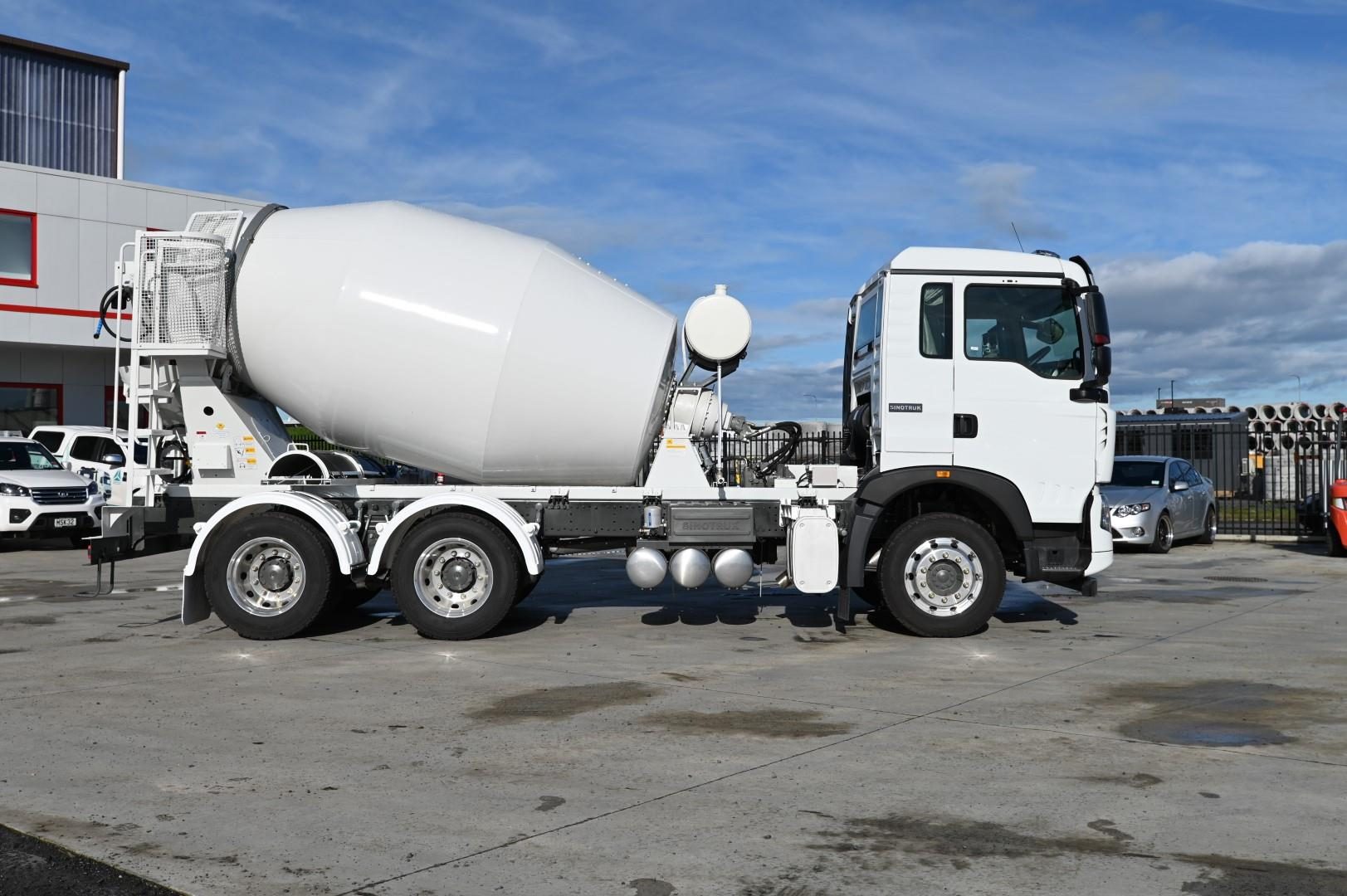

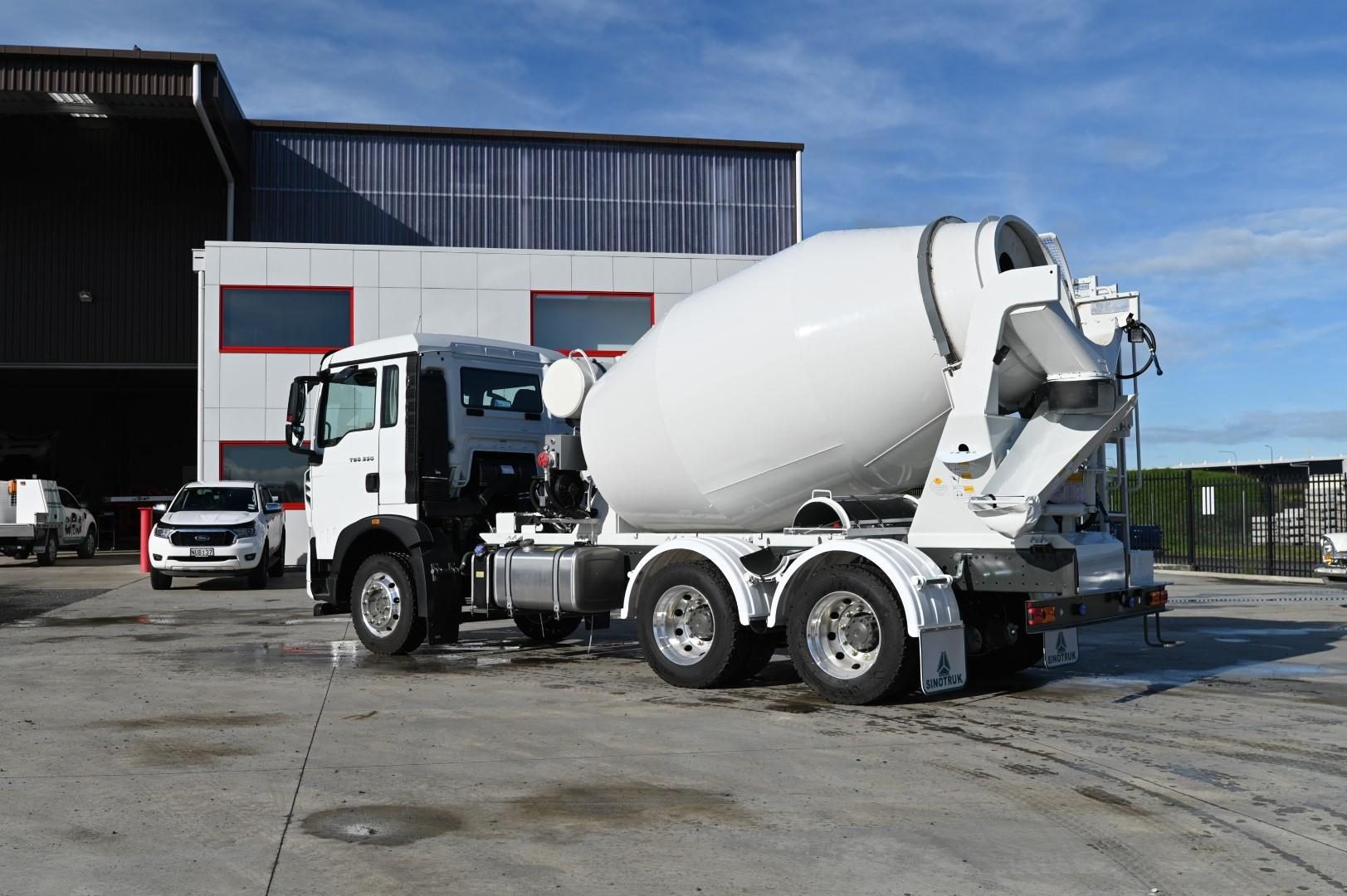

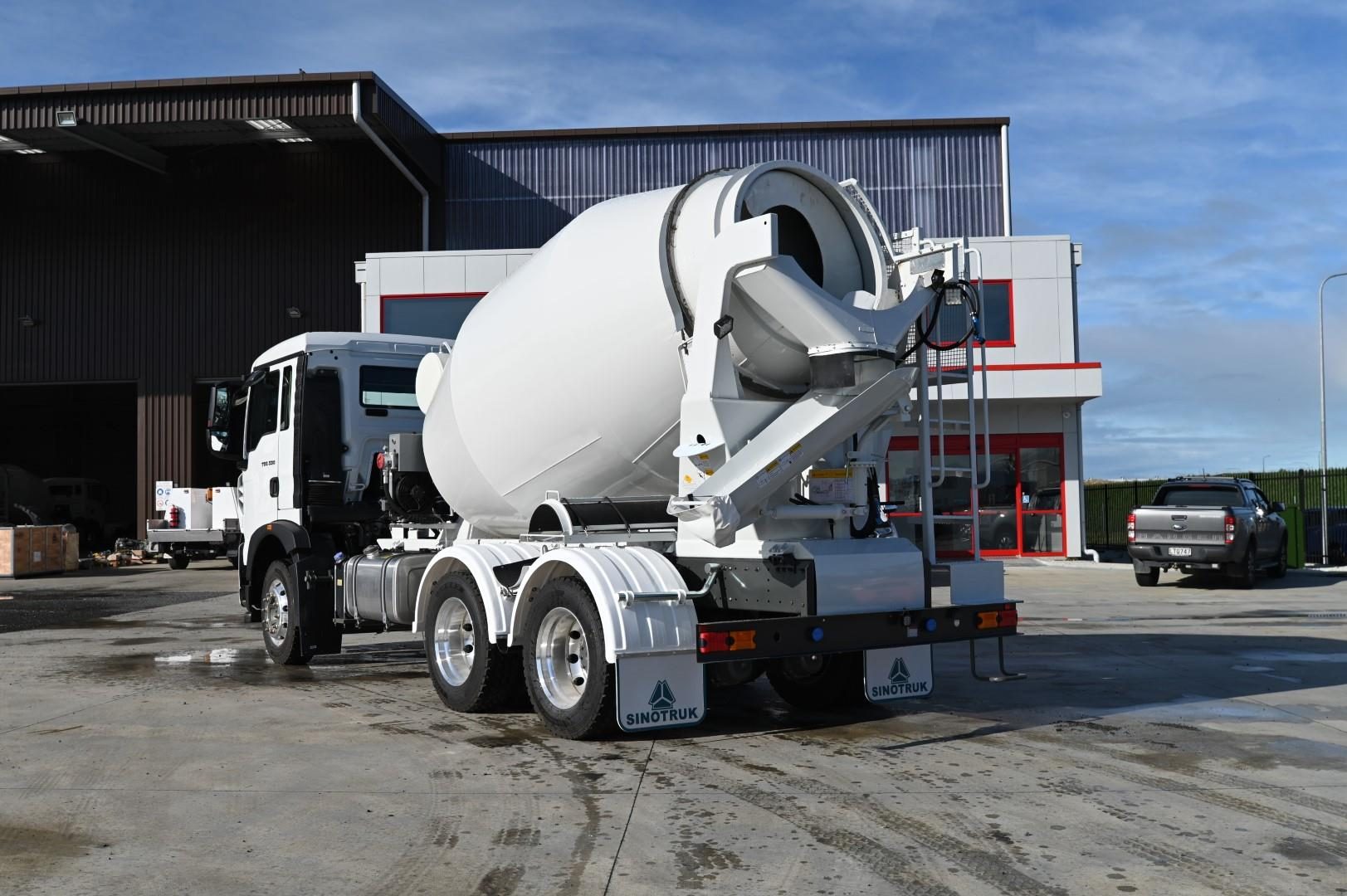

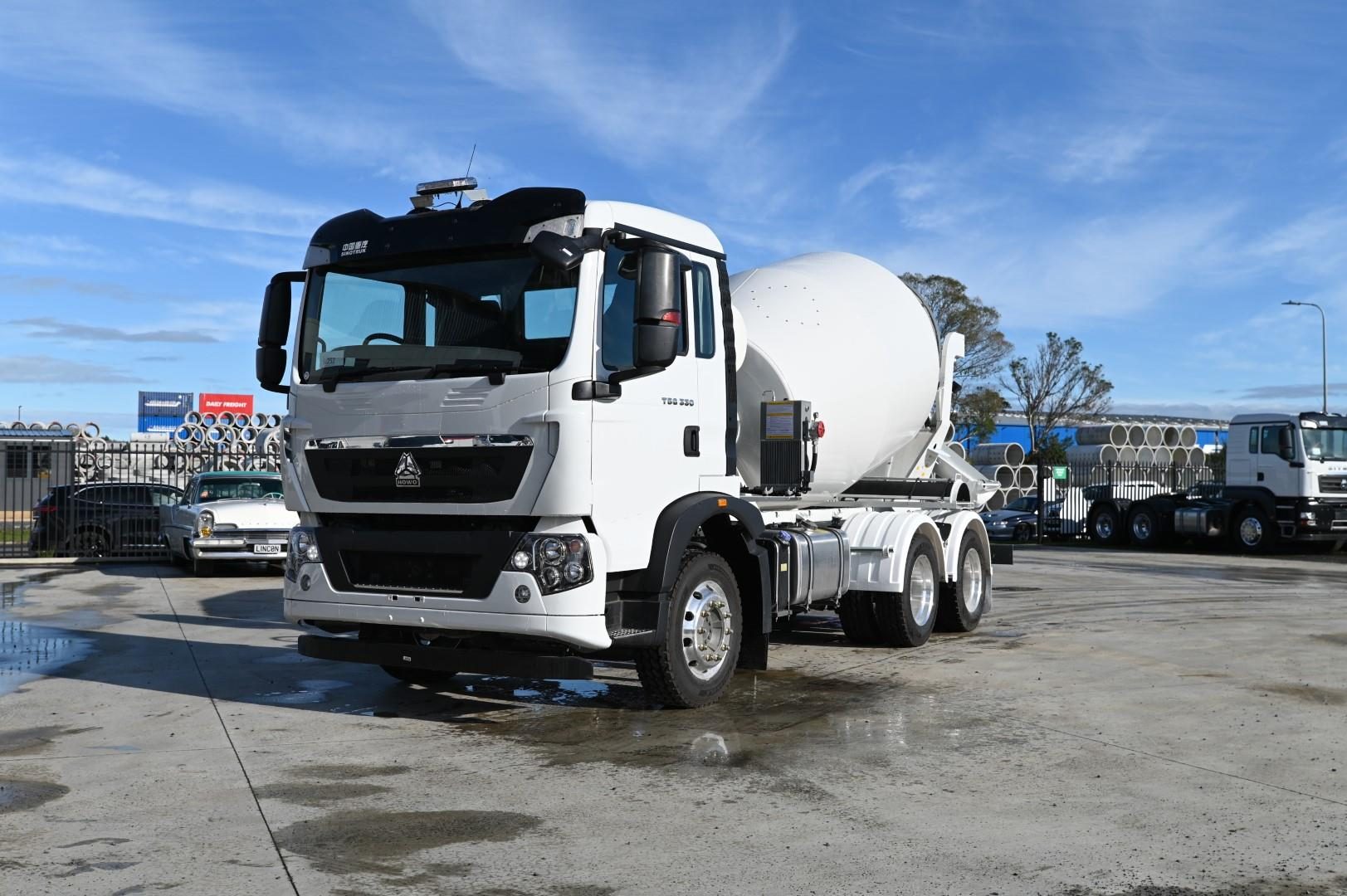

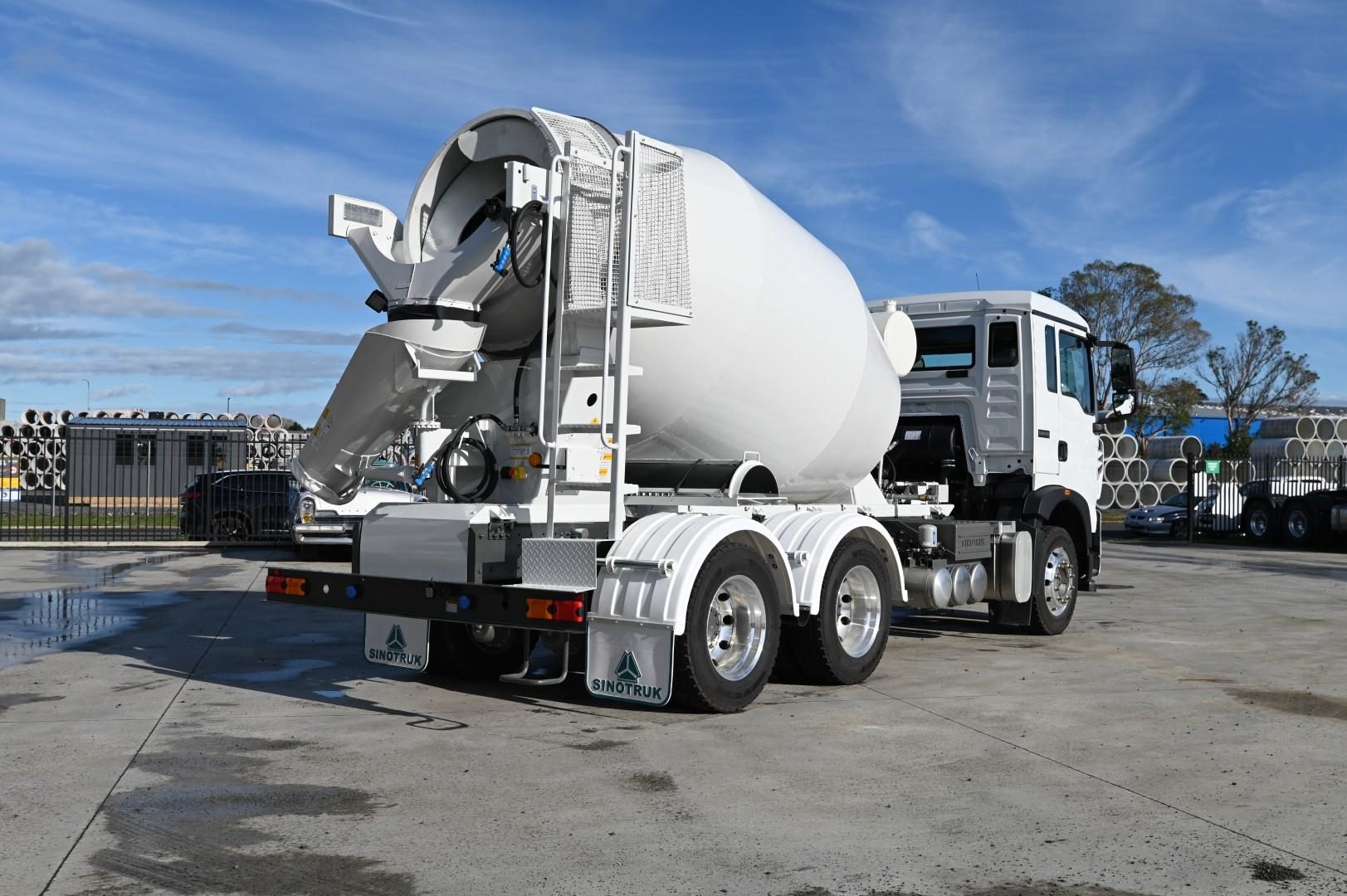

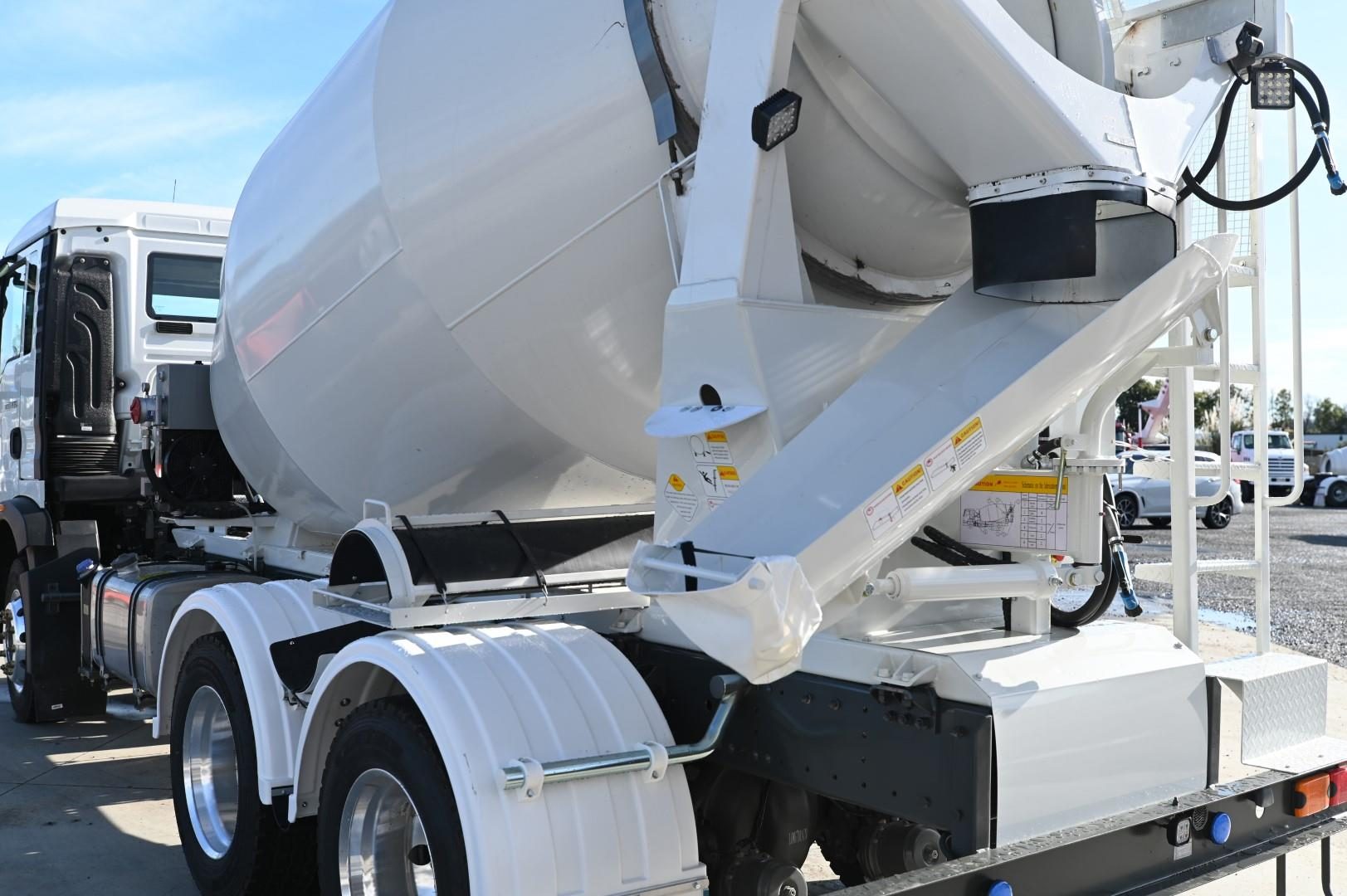

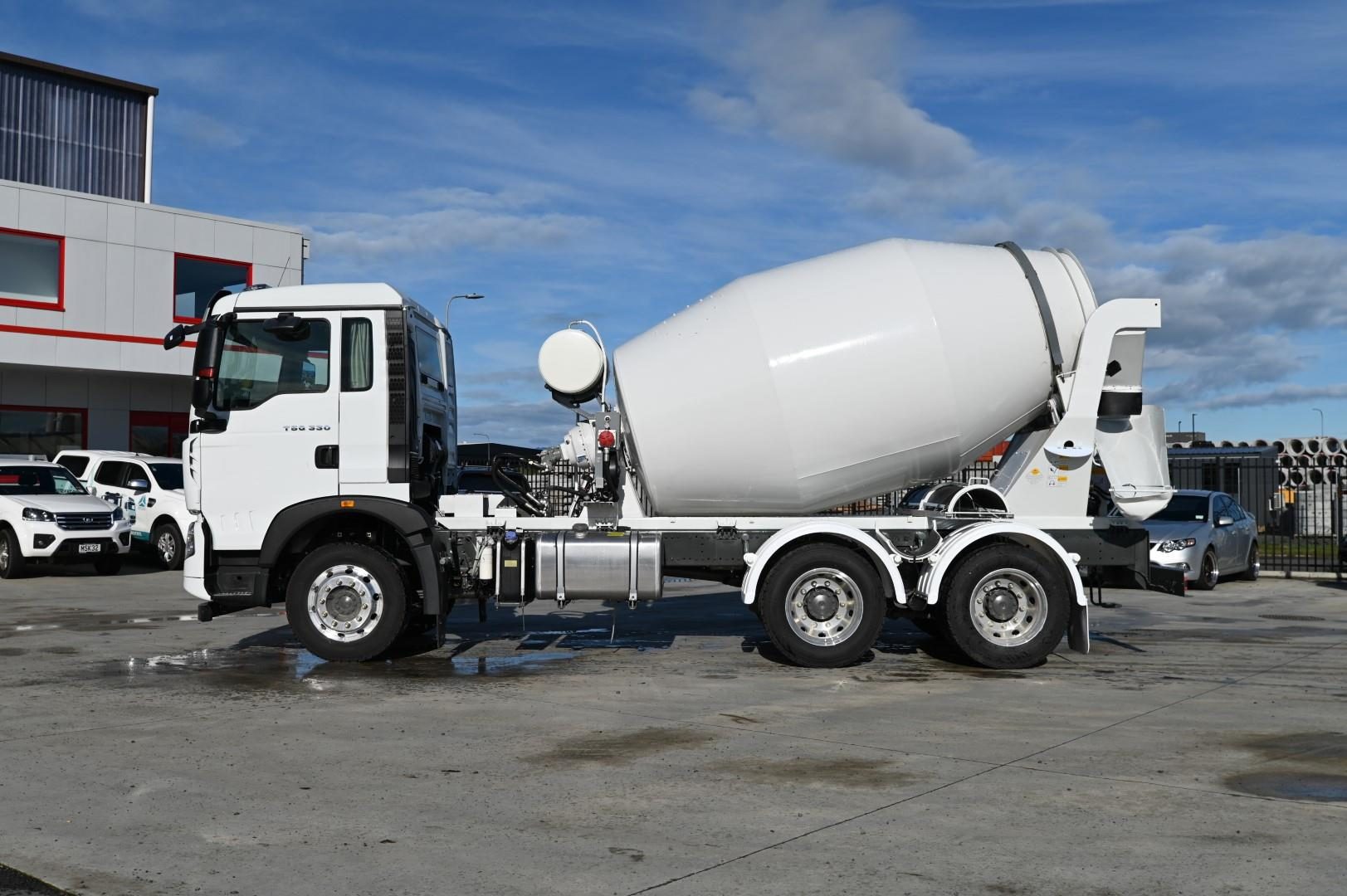

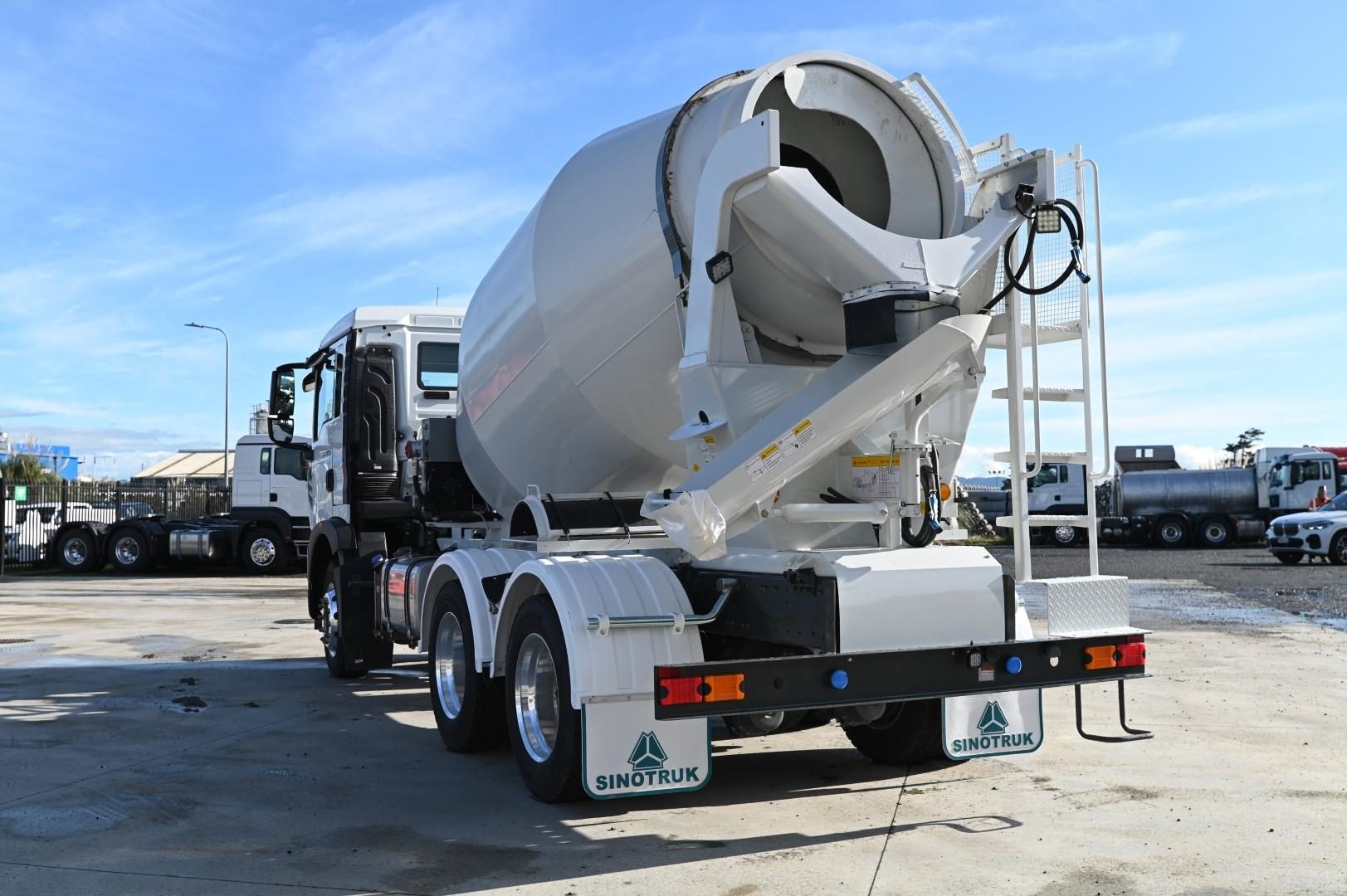

6.5 metre capacity
New Truck Warranty.
GVM: 25,000kg
GCM: 40,000kg
Tare: 11,020kg
Length: 9105mm
Width: 2496mm
Height: 3035mm
Front wheel track: 2015mm
Rear wheel track: 1870mm
Min ground clearance: 230mm
Approach angle: 19o
Departure angle: 36o
Max speed: 110km/h
Max climb gradient: 36.5%
Fuel tank: 300L
Engine Model: MC07.33-50
Displacement: 6.87L
Power rating: 248kW / 2300r/min
Max torque Nm/(r/min): 1250-1200-1800
Emissions: Euro V
Transmission Model: ZF 9 Speed
Driving axle model: MCY13 Drum
Differential ratio: 3.08
Differential lock: Cross lock
Front suspension: Spring
Rear suspension: Spring
Steering system
Model: Ball circle
Ratio: 23:1Max pressure of pump (kPa): 15,000
Braking system type: Dual circuit compressed air
Working pressure (kPa): 1,000
Brake power adjust type: ABS/ASR/EBL/TPM
Parking brake type: Spring
Assistant brake type: EVB
Electrics
Circuit type: Double
Voltage: 24V
Alternator power: 2.2kW
Batteries voltage/capacity (V/Ah): 2x12/165
Cabin Model: T5G M
Seats: 2
