In build now. *Example Photos

GVM: 50,000kg

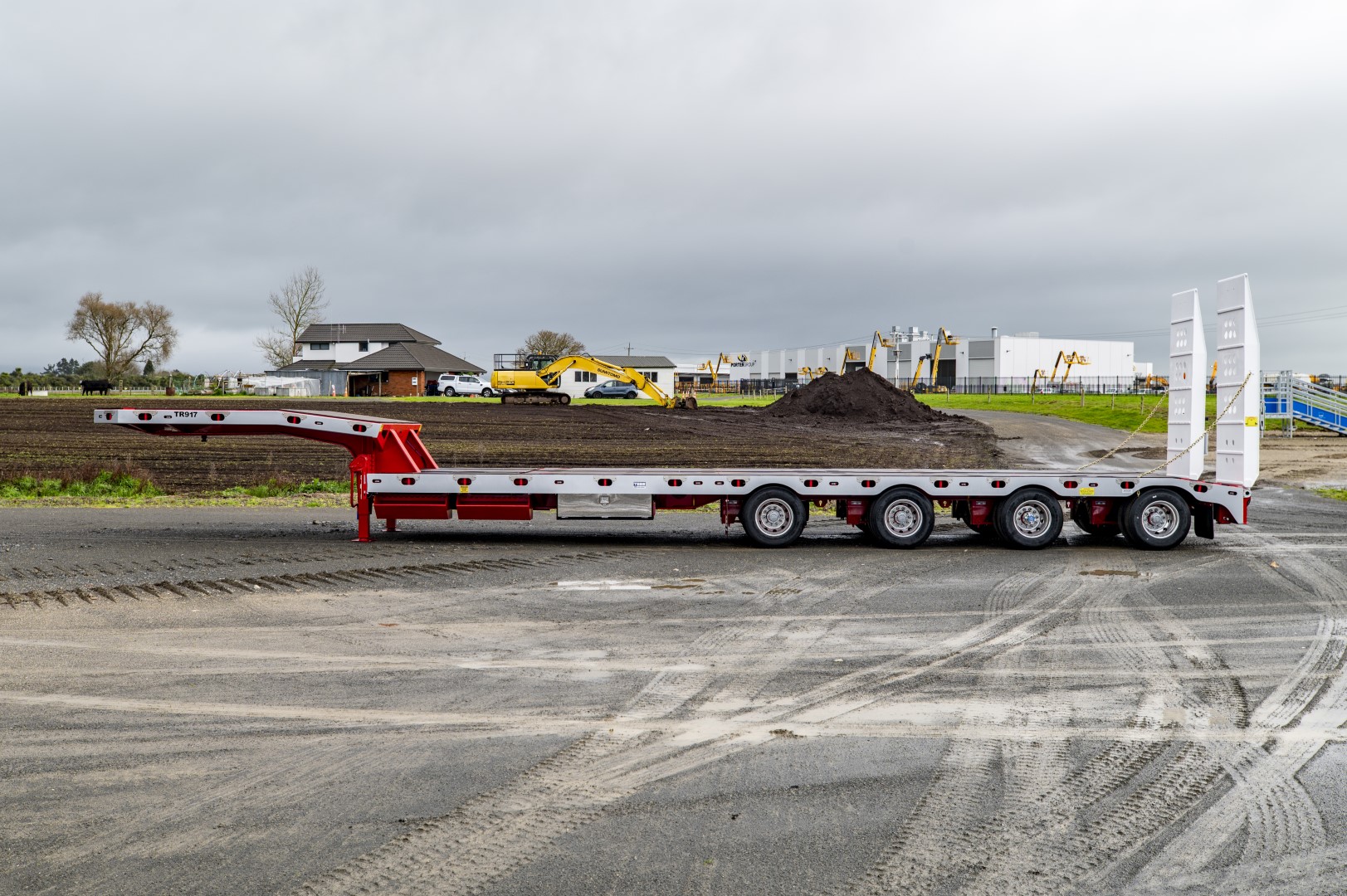

Deck Length: 10,900mm.

Top Deck: 3.5m long Air Operated pop-up Ramps to Top deck 5t Capacity.

Forward Length: 9,200mm

Deck Ride Height: 910mm.

Deck: 2800mm Wide Main deck.

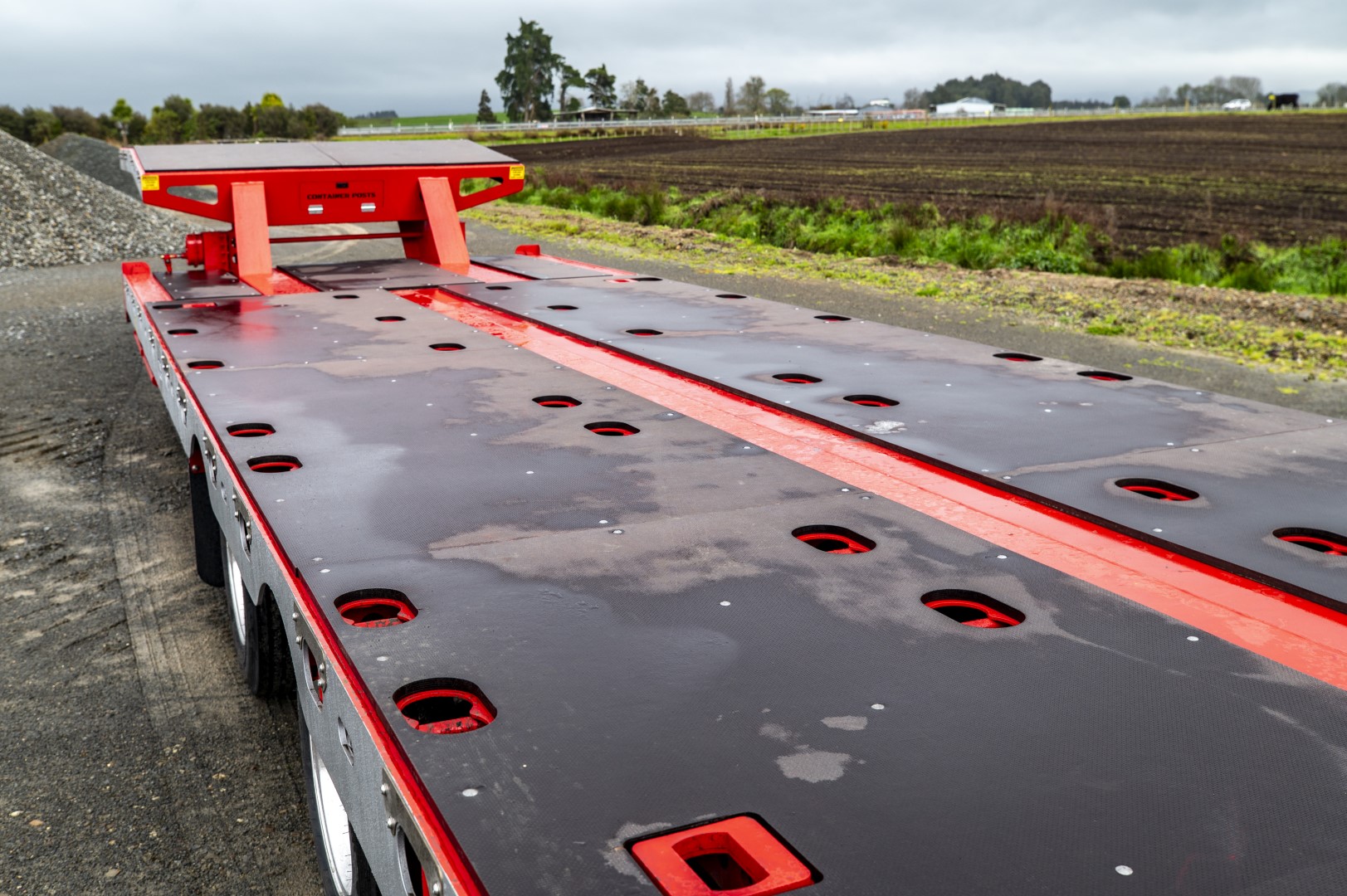

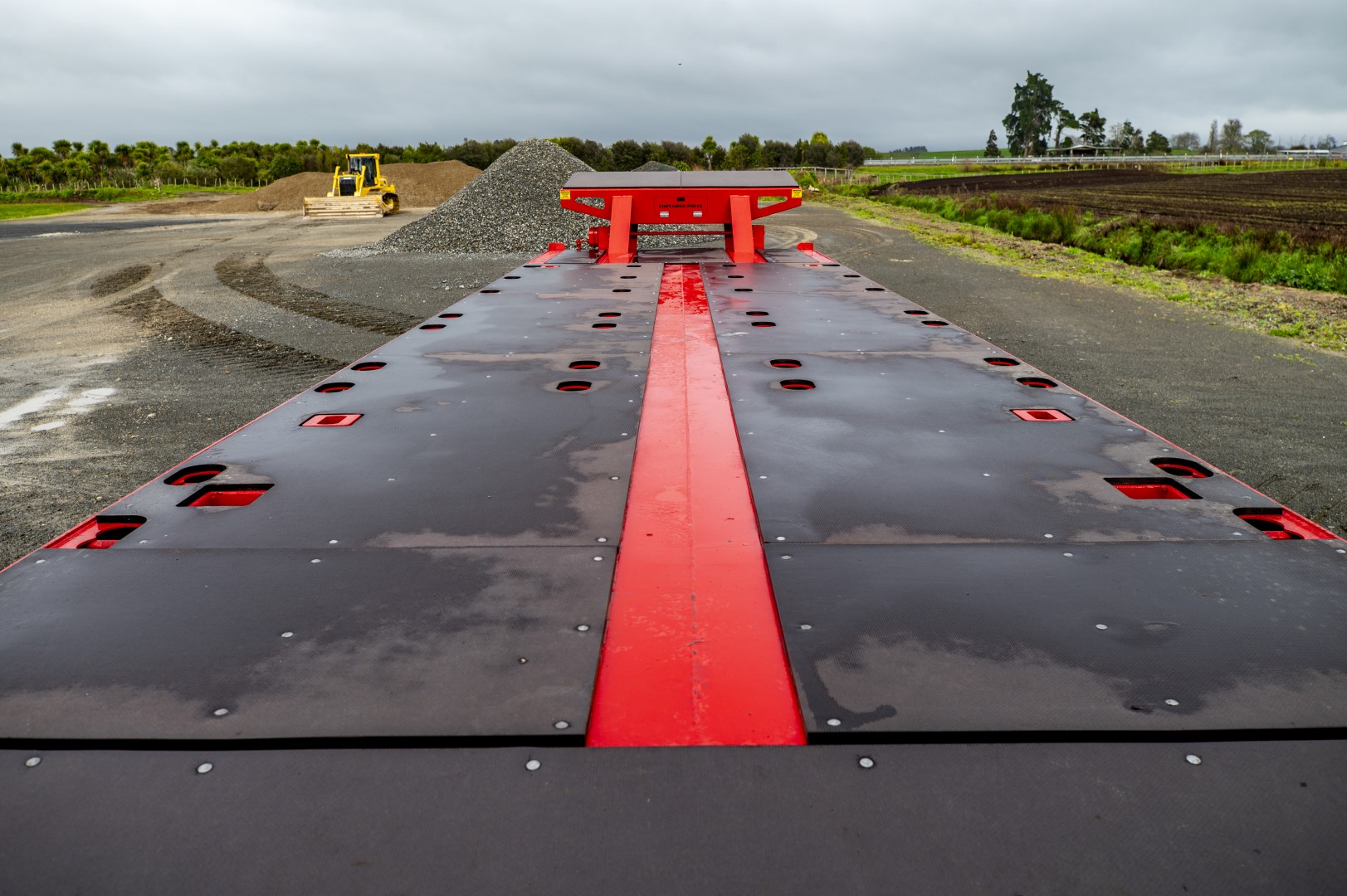

Deck Type: Steel deck with 18mm H3 Plywood.

Lashings: 15x per side Bottom deck Certified lashing ties to 9,000kg in combing Rails.

Lashings: 5x per side Top deck Certified lashing ties to 9,000kg in combing Rails.

Lashings: 1x Twitch holder on drivers side under front of bottom deck, 900mm long, holds 10 twitches.

Axle Spacing: 1600mm - 1600mm - 1600mm

Axle Type: MTE 17.5 84 Axles with Outboard Drums, 3x fixed axles, 1x Steering axle on rear, Locks when reversing.

Lifting Front & Rear Axles.

Suspension: Air Suspension

Brakes: Knorr-Bremse EBS.

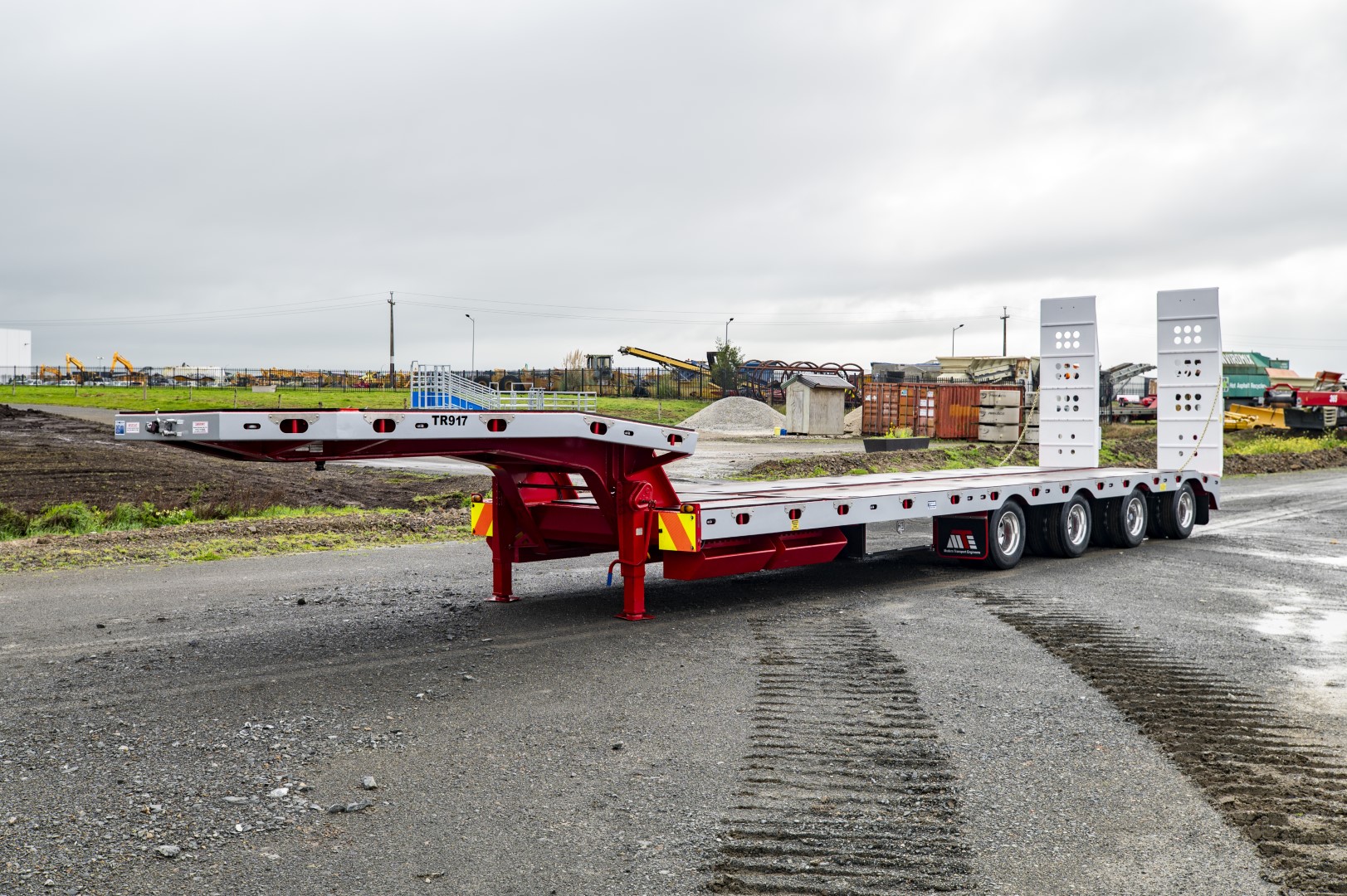

Gooseneck: Fixed Gooseneck with single Position Rub plate.

Rubplate Height: 1378mm

50mm & 90mm Drop-In Kingpins.

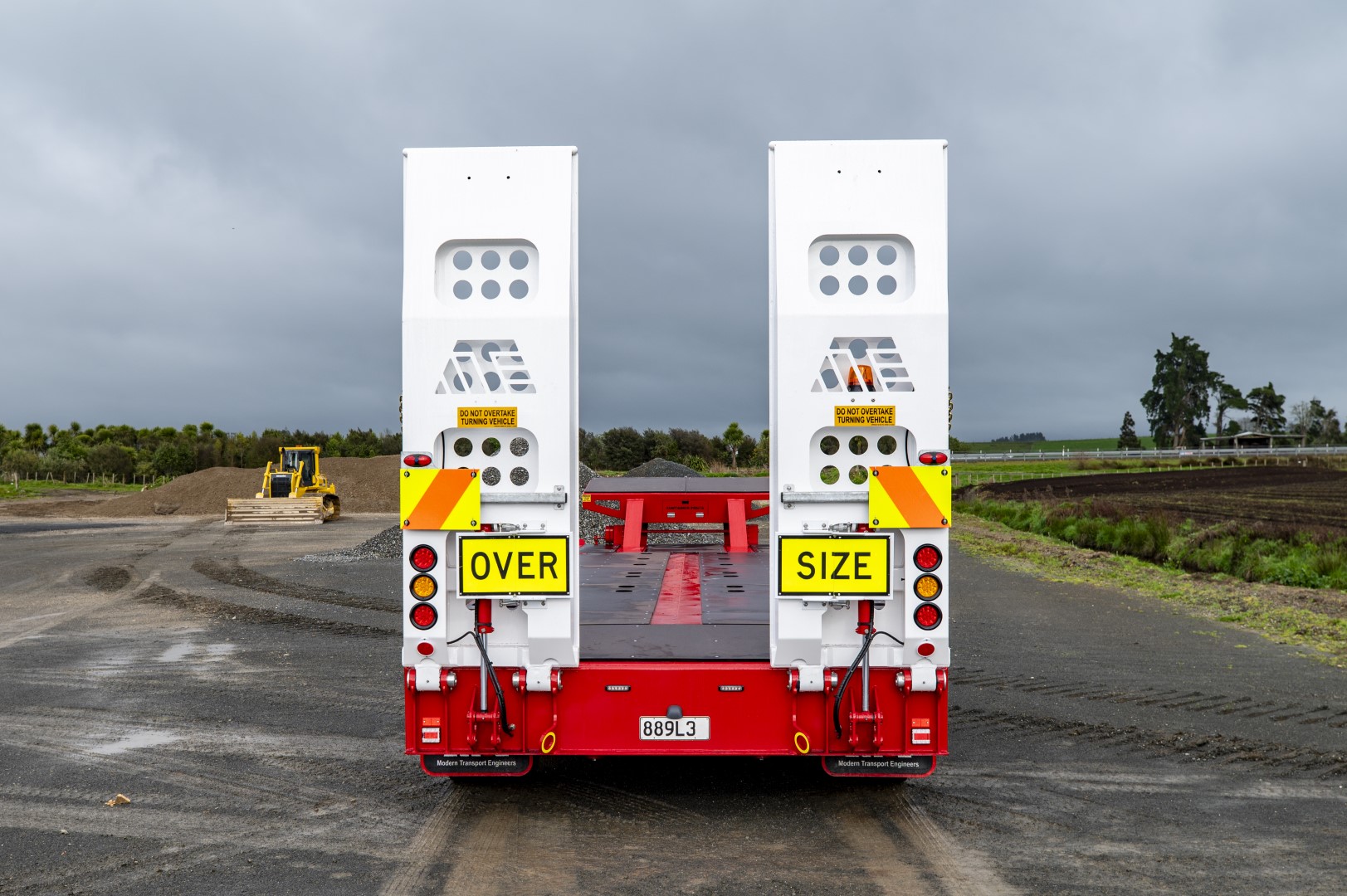

Main Ramps: 2700mm x 900mm Hydraulic Ramps.

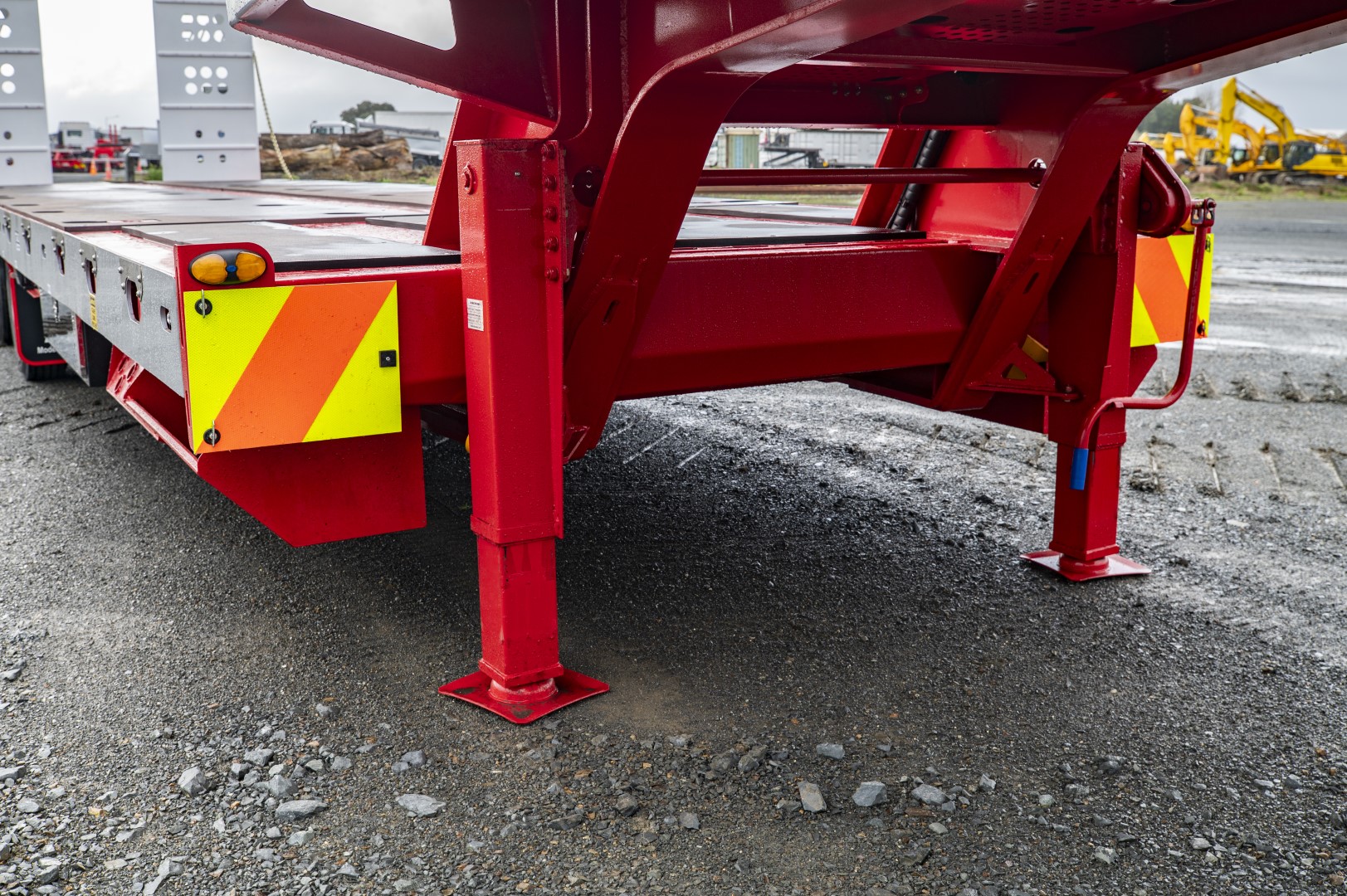

Full Weight wind-up landing Legs.

Hydraulic Supply: Truck PTO

Controls: Ramp controls Under deck Passengers side, Between 3rd & 4th Axles.

Air Suspension controls Passengers side.

Yard Release Valve controls Drivers Side.

Lights: LED

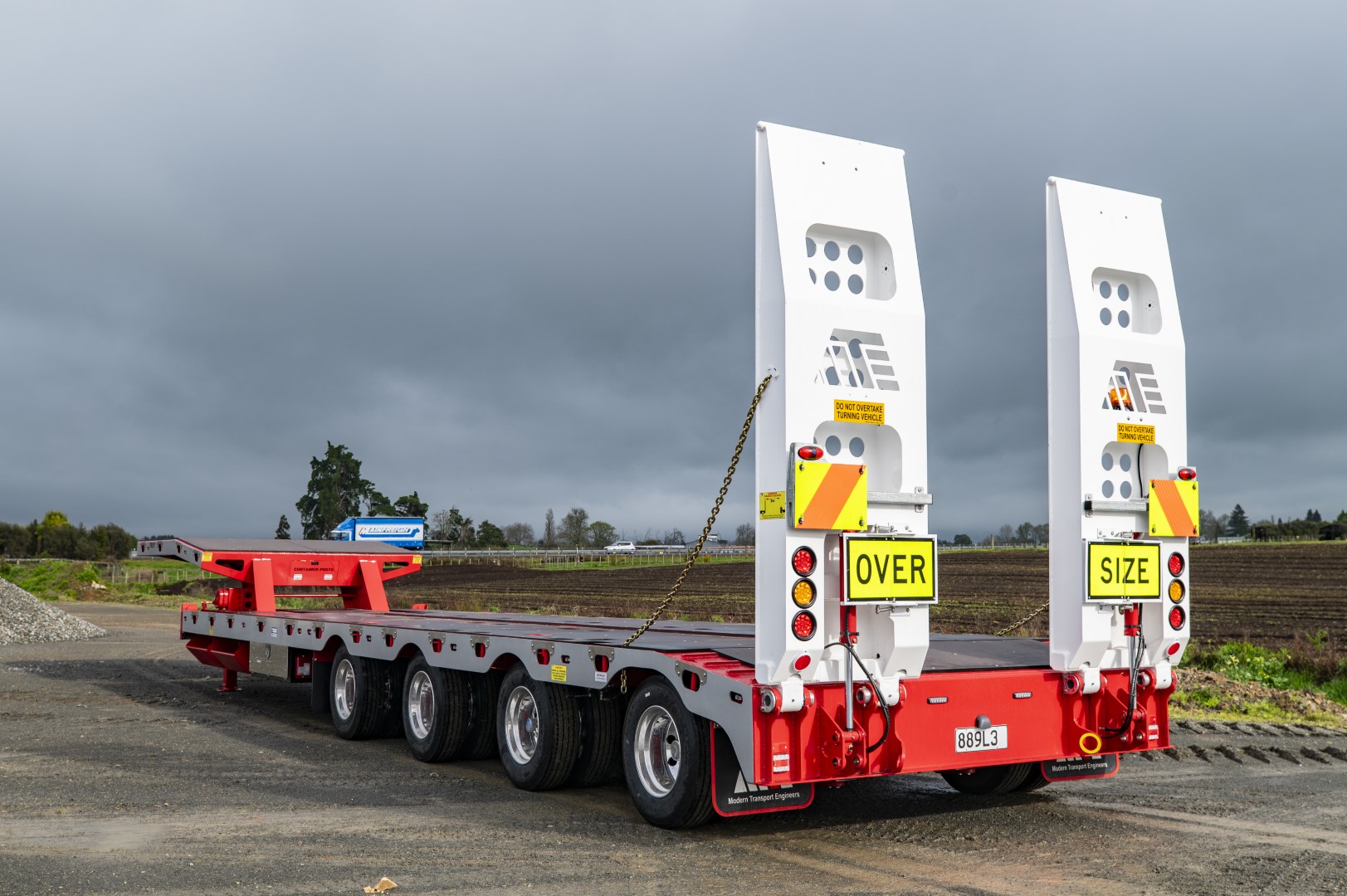

Signage: Folding OVERSIZE Signs. 600x200 Chevrons. Ramps Warning Stickers. Do Not Overtake Turning Vehicle Stickers.

Wheels: 16x Total 17.5 x 6.75 Alloy Wheels Machined

Tyres: 16x Total 235 x 17.5 Synergy Tyres

No spare Tyre Carrier.

Manual Greasing out to a block for steer axle only.

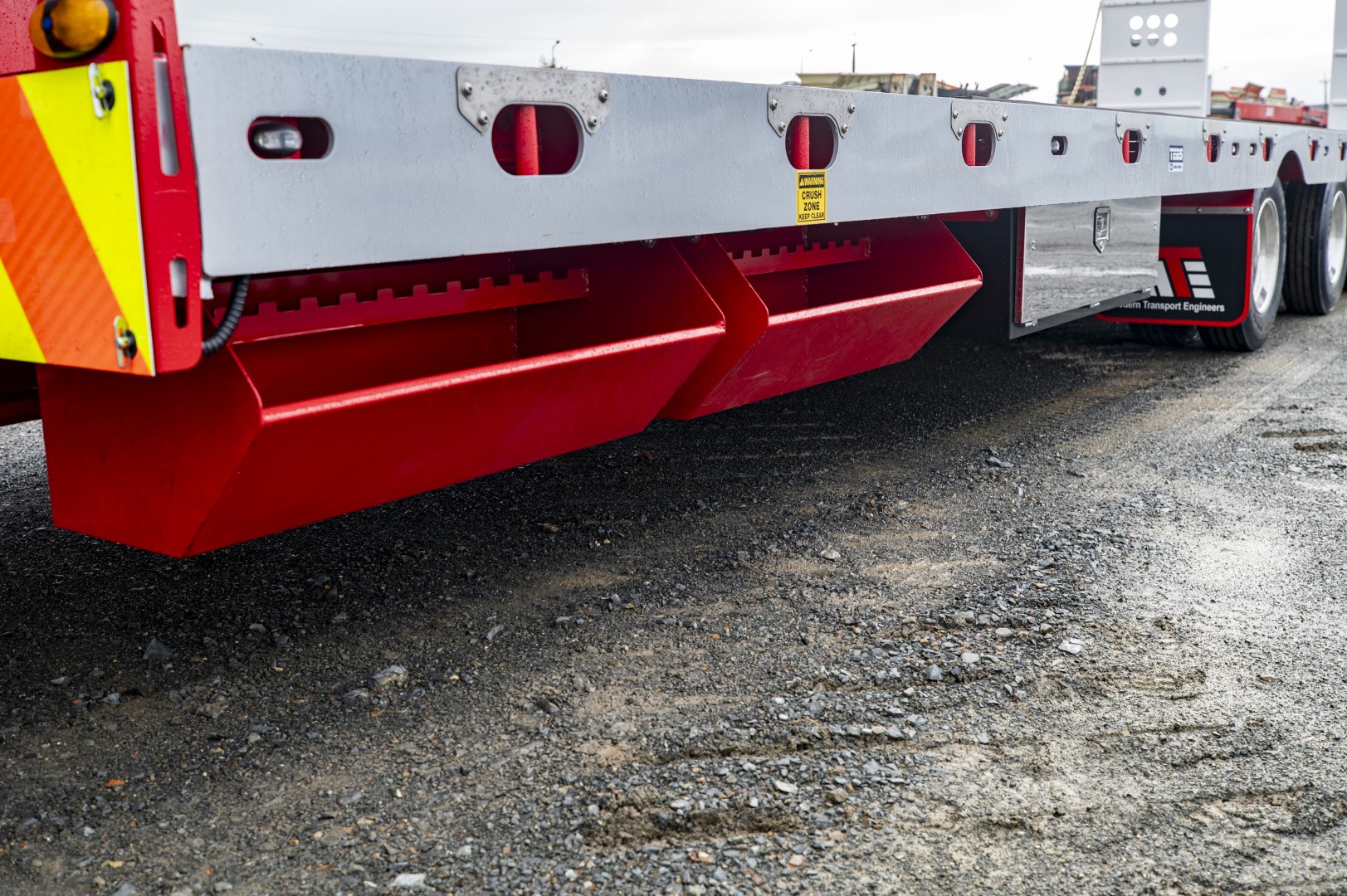

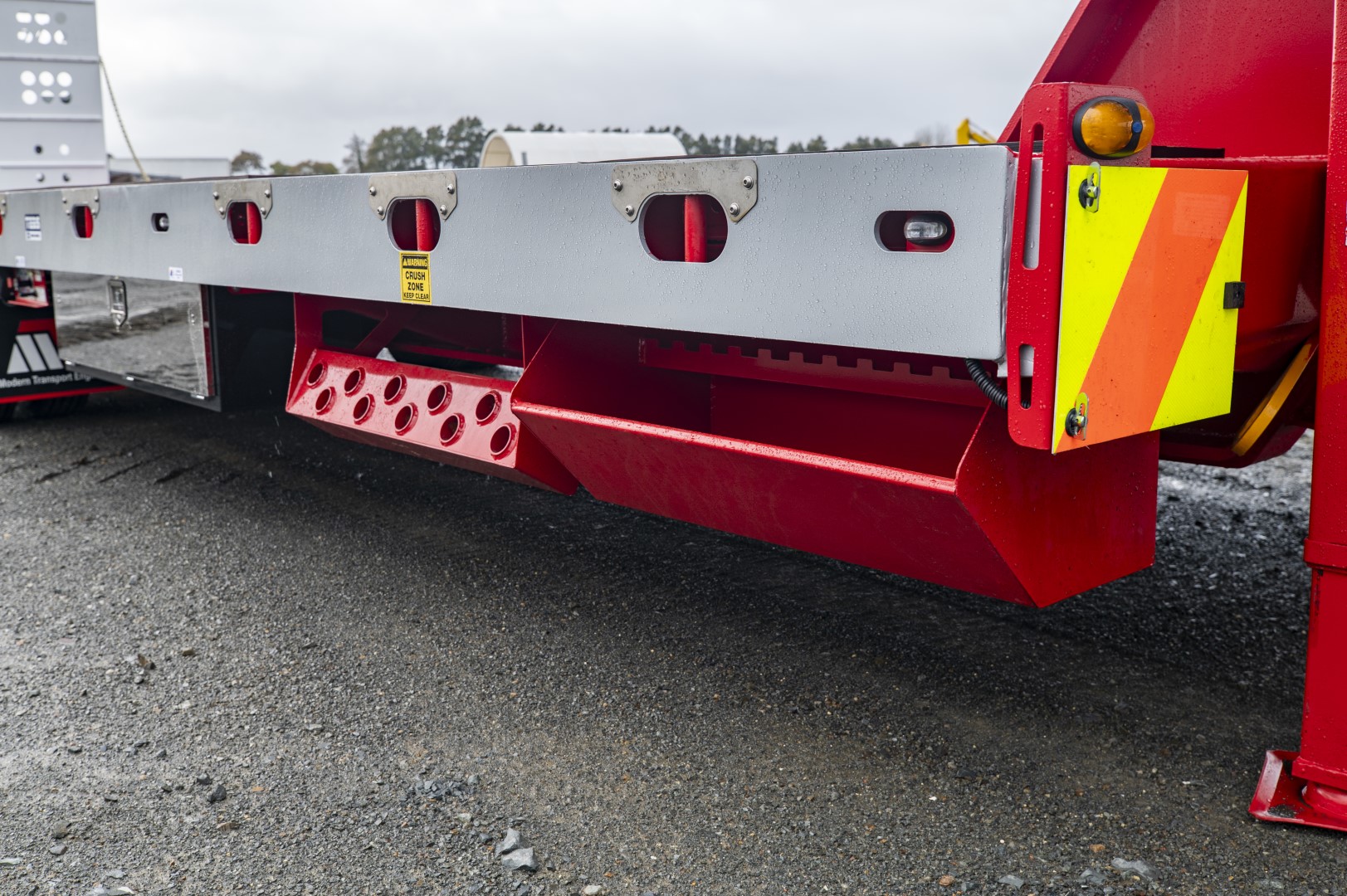

Storage: 2x Lockable Toolboxes 1200mm long, 2x Chain Bins 900mm long.Paint

Protectors: Stainless covers bolted above combing rail tie points.

Hoses: Air Suzi, Electrical Suzi, EBS Suzi and Hydraulic Hoses supplied for couplings.

Sliding Chevrons with lights Front & Rear. (Mounted on front of Bottom Deck & on ramps).

Ship-Lock pockets for 1x 20 Empty Container on bottom deck. Includes 4x Double ended Ship Locks supplied.

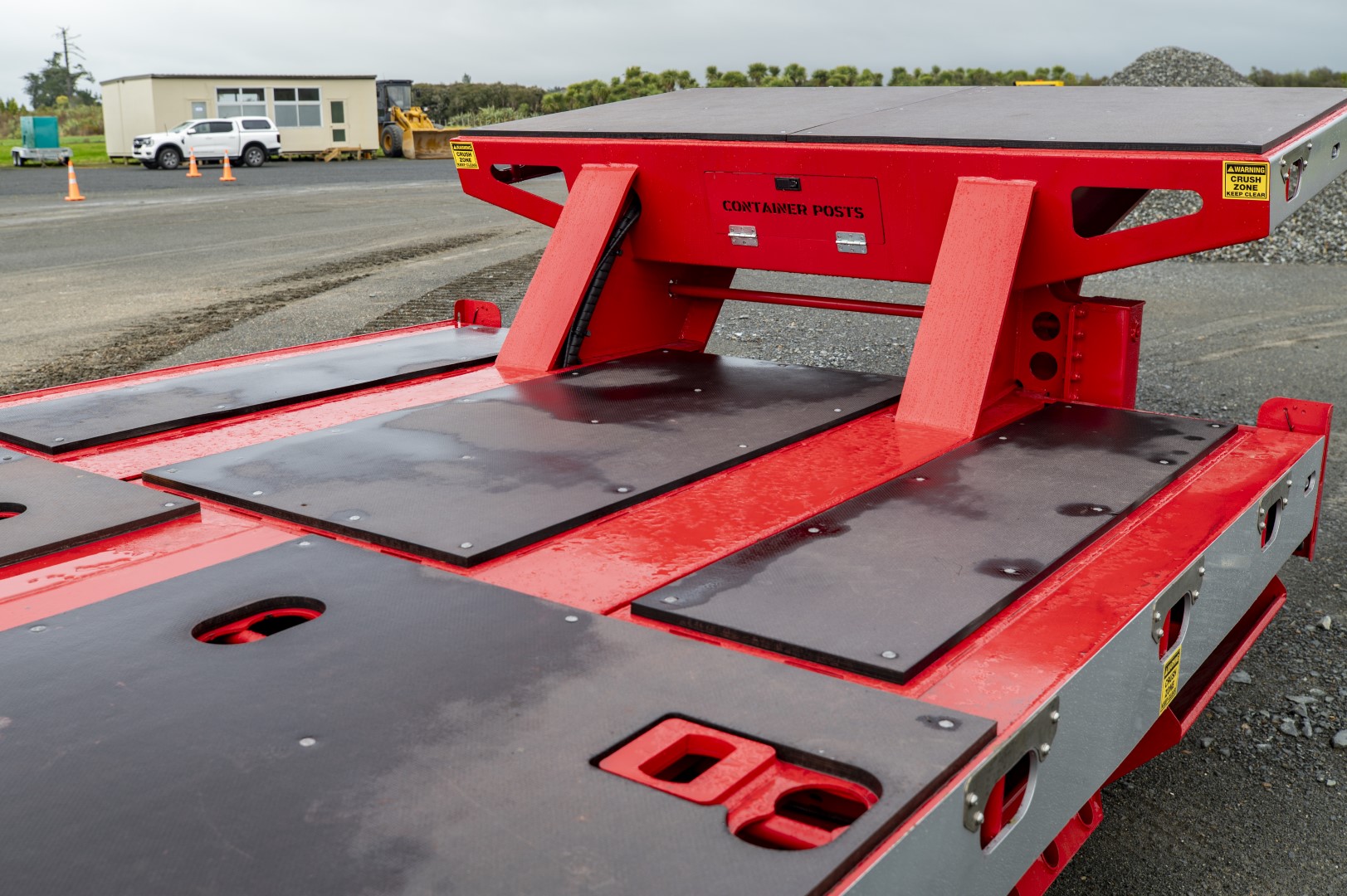

Ship-Lock Pockets 1x 40 Container. Includes 6 x Double ended Shiplocks & 2x Stools for loading 1x 40 containers utilising top deck.

E-Road Ready.
